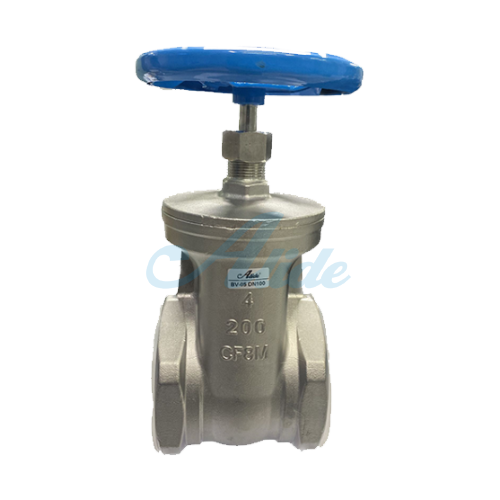

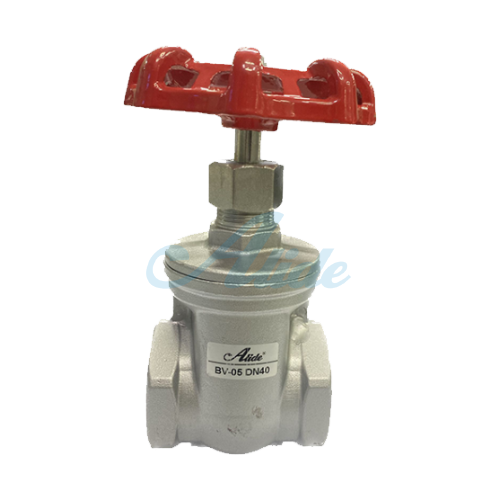

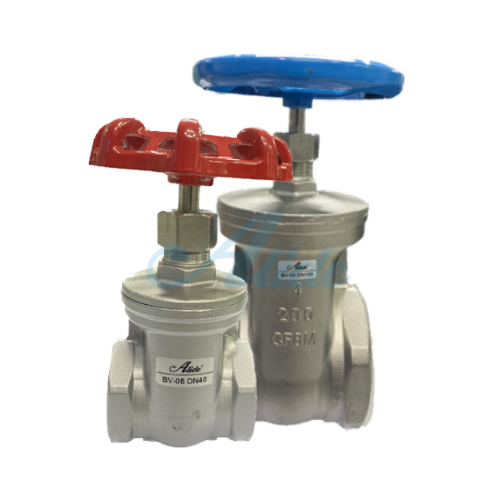

The AD-71 Gate Valve is a multi-purpose on/off valve engineered for effective fluid flow isolation. Utilizing investment casting construction for its body and bonnet, this valve ensures high strength and superior surface quality. Unlike ball valves, a gate valve operates by lifting or lowering a gate (disc) perpendicular to the flow path. When fully open, the gate is completely removed from the flow path, resulting in minimal flow resistance and almost no pressure drop.

• Perfect Flow Isolation: Designed strictly as an on/off valve, the AD-71 provides a tight shut-off, making it highly reliable for isolating segments of a gas pipeline.
• Low Flow Resistance: When fully open, the flow path is straight and unobstructed, leading to high flow efficiency and low energy loss—critical in gas transmission systems.
• Corrosion Resistance: With primary materials being CF8M (equivalent to Stainless Steel 316) for the body and bonnet, and SS316 for the disc and stem, the valve offers superior corrosion resistance against various types of gas, including natural gas.
• Universal Thread Standard: Compatible with international thread standards such as ISO, BS, DIN, JIS, and ASME, facilitating easy integration into diverse piping systems.
• Reliable Pressure-Temperature Performance: It boasts a 200 PSI (PN16) Pressure Rating and a -25oC to +180oC Working Temperature, ensuring stable and safe operation under standard gas conditions.

Specification:
Koneksi: Thread
Pressure Rating:  200 PSI (PN16)
Temperature: -25oC to +180oC
